Gate Valve

Description:

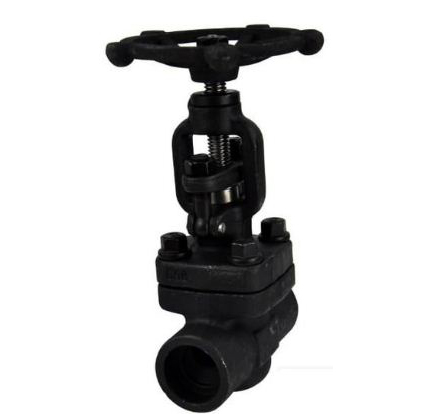

BUENO Threaded Forged Steel Gate Valve is Class 800 gate valve with unique threaded connection for more convenient connection.

Design & Manufactureing standard: API 602, ASME B16.34, BSA 5352
Face to Face: ASME B16.10, EN 558(threaded and sw as per manufacturer’s std)
Flanged dimension: ASME B16.5
Butt weld dimension: ASME B16.25
Thread connection Dimension: ASME B1.20.1

Specification  :

* Size: 3/8" ~ 2"
* Body : SS304, Carbon Steel
* Connection : Threaded
* Class : ANSI 150, JIS 10K, PN16

Description:

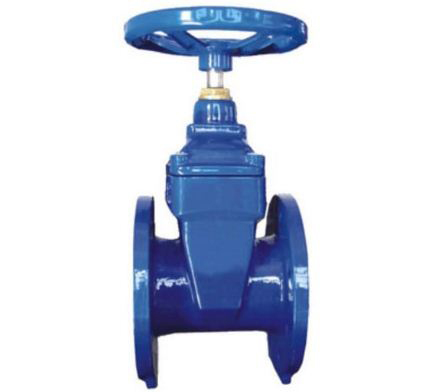

Resilient Double Flange Gate Valve

Specification  :

* Size : DN50-DN600
* Body : SS304, SS316, Ductile Iron, Cast Iron
* Seat Type : Soft Seat EPDM
* Class : ANSI 150, JIS 10 K, PN16

Description:

BUENO Knife Gate Valve is a component that utilizes a blade to cut through clogging of heavy liquids; whereas a slide gate valve is a component utilizing a slide plate in order to better manipulate or control the flow of dry bulk material. Knife gate valves were originally designed for use in the pulp and paper industry.

Specification  :

* Size: DN50-DN700
* Body :SS304, SS316, Ductile Iron?
* Hand wheel : Malleable iron

Description:

Lug Knife Gate Valve

Specification  :

* Size : DN50-DN600
* Body : SS304, Carbon Steel
* Suitable Medium : Pulp, sewage, slurry coal, ash, slag-water mixture
* Application : Water treatment, power industry, chemical industry, iron and steel industry,etc

Description:

Hand Wheel Double Flange Gate Valve

Specification  :

* Size : DN500-DN1200
* Body : Gray iron, ductile iron, cast steel
* Gate : Ductile iron+EPDM or NBR
* Seal : NBR,EPDM
* Hand wheel : Malleable iron
