Ball Valve

Description:

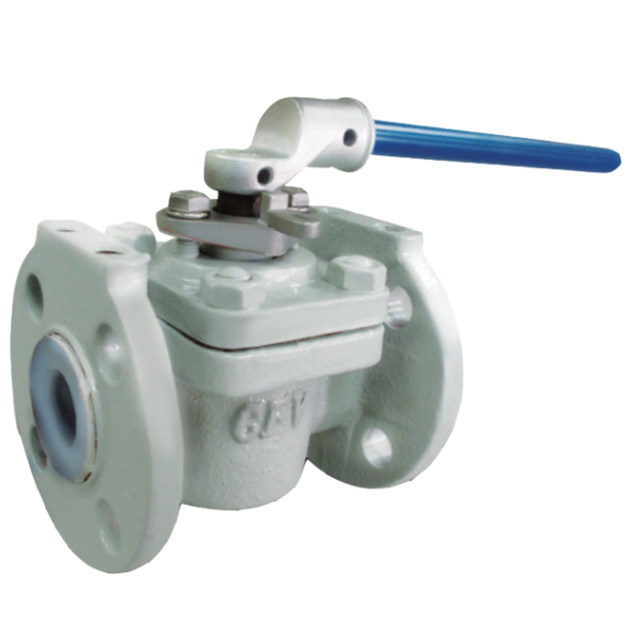

Bueno Plug Valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open.

Our Plug Valves come with PFA Lining or not depend on your choice.

Specification  :

• Size range 1/2" ~ 3”
• Pressure Grade ASME CLASS 150 LB
• Operating Temperature -30℃ ~ +160℃
• Valve Body Design ASME B16.34
• Max Operating Pressure  250 psi
• Shell Thickness Test  B16.42
• Seat Thickness Test MSS-SP-61
• Face to Face  ISO5752/ ASME B16.10

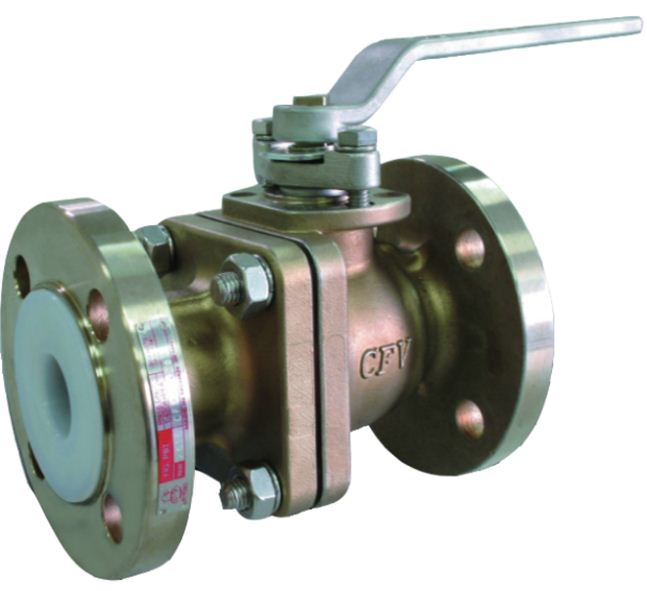

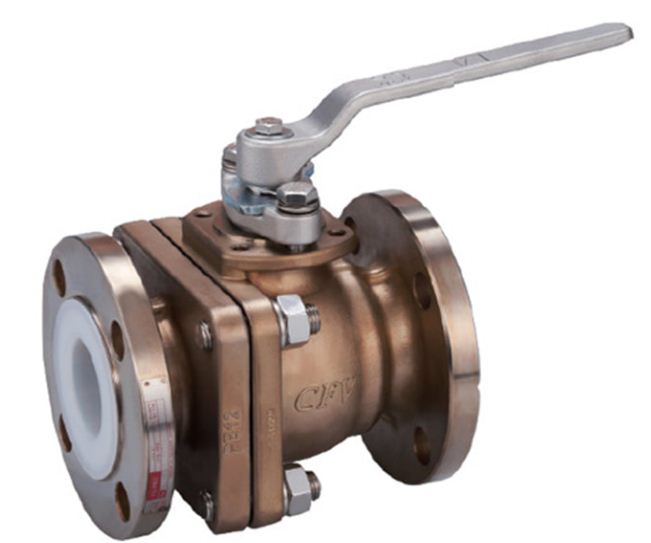

PFA Lined Stainless Steel Ball Valve

Bueno PFA Lined Ball Valves made from hi-grade stainless steel, has surfaces of valve trimmed parts are lined with PFA to protect valve service life from chemical corrosion. Lining with high durability. Injection molded PFA lining is free from pinholes, cracks, swelling, and locally uneven thickness, and prevents service problems with exfoliation, stress cracking and fluid permeation.

This is PB12 Short Pattern Series, we also offer PFA Lined Ball Valve (Long Pattern) Class ANSI 150 ASTM A351 CF8 1/2" ~ 6"

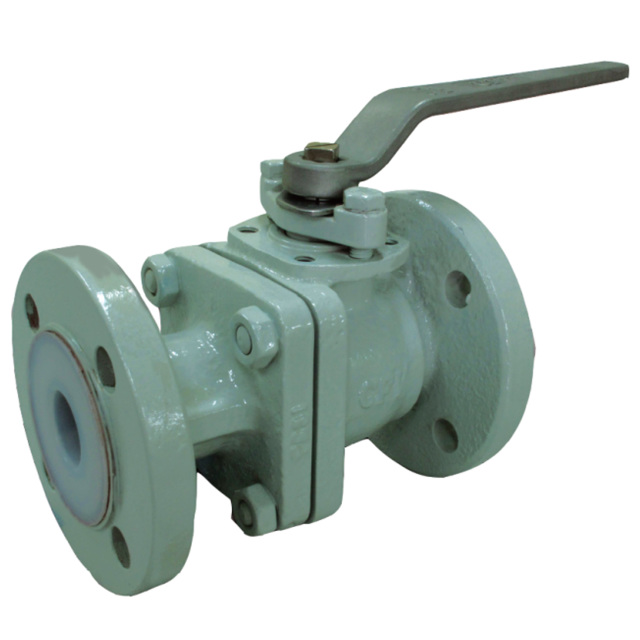

PB-31D PN16
PFA Lined 2-Way ball Valve PN16

Specification  :

• Size Range : 1/2"~4"
• Pressure grade : PN16
• Operating temperature : -29°C~+160°C
• Valve body design : ASME B16.42
• Maximum operating pressure : 16bar (232psi)
• 2~3 mm of thickness for PFA lining
• Joints : Flange EN1092-1
• Face to face : EN558-1
• PED - CE certificated
• Tight Fit between PFA liner and stainless body throudh dovetail design
• Double sealing valve body design
• Easy automation with ISO 5211 acuator mounting pad

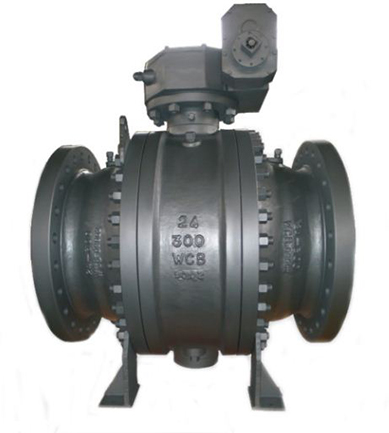

2PC or 3PC Trunnion Ball Valve

Double block and bleed

Self relieving seat

Double piston seat

Trunnion supported design reduces operating torque

Antistatic device for grounding of the ball, stem and body

O-rings plus firesafe stem packing prevent leakage Corrosion resistant low-friction bearings

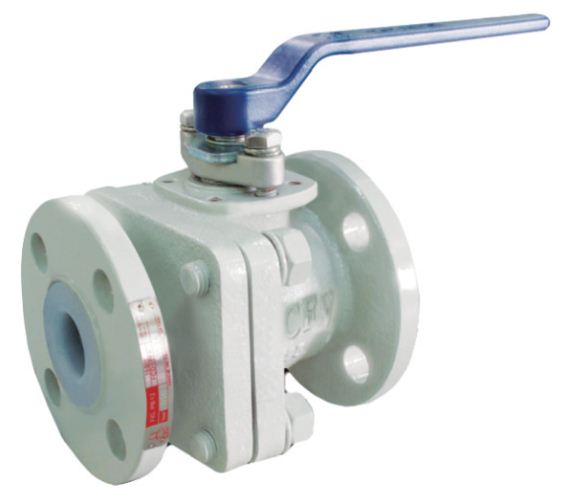

PB-12D CLASS 150 LB
PFA Lined Ductile iron Ball Valves Class ANSI 150

Specification  :

* Size Range : 1/2"~4"
* Pressure grade : ANSI CLASS 150
* Operating temperature : -29°C~+160°C
* Valve body design : ASME B16.42
* Maximum operating pressure : 250psi
* Joints : flange ASME B16.5 CLASS 150 RF
* Face to Face : PB12D acc. to ASME B16.10
* 2~3 mm of thickness for PFA lining
* Tight Fit between PFA liner and stainless body through dovetail design
* Double sealing valve body design
Easy automation with ISO 5211 actuator mounting pad

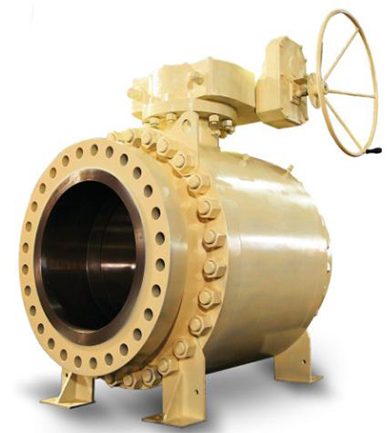

3PC Body Forged Trunnion Mounted Ball Valve

Specification  :

* Size: 2"-48"

* Class: 150~2500

* Three Pieces Forged Steel Body

* Trunnion Mounted Ball, Full & Reduced Bore

* Anti-static Device

* Blow-out Proof Stem

PB-16 JIS 10K

PFA Lined 2-Way Ball Valve Class JIS 10K

Specification  :

* Size range 15A ~ 100A
* Pressure Grade JIS 10K
* Operating Temperature -30? ~ +160?
* Valve Body Design ASME B16.34
* Max Operating Pressure1.37 Mpa
* Joint Flange JIS B2220-10K RF
* Face to Face BUENO STANDARD
* Testing Standard JIS B2003

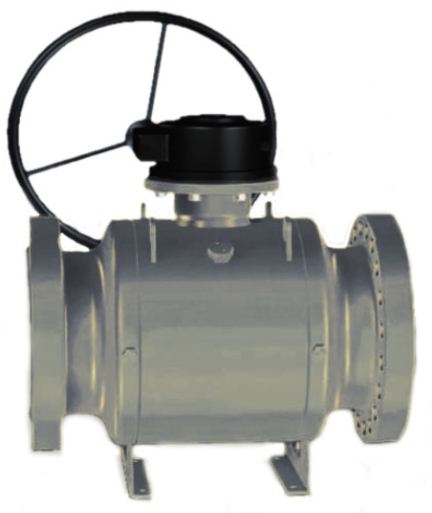

3 PC Fully Welded Trunnion mounted Ball Valve

Specification  :

* Size: 2"-48"

* Class: 150~2500

* Three Pieces Forged Steel Body

* Trunnion Mounted Ball, Full & Reduced Bore

* Anti-static Device

* Blow-out Proof Stem

* Double Block and Bleed

* Fire Safe Design

* Emergency Sealant Injector (6" & Larger)

* Vent Valve (6" & Larger)

* Lifting Lugs & Supporting Feet ( 8" & Larger)

* Seat Pocket SS overlay ( Optional)

Seals Area ENP Coated

Description:

Bueno PFA Lined Ball Valve made from hi-grade stainless steel, has surfaces of valve trimmed parts are lined with PFA to protect valve service life from chemical corrosion. Lining with high durability. Injection molded PFA lining is free from pinholes, cracks, swelling, and locally uneven thickness, and prevents service problems with exfoliation, stress cracking and fluid permeation.

We also offer PFA Lined Ball Valve (Short Pattern) Class ANSI 150 ASTM A351 CF8 1/2" ~ 6"

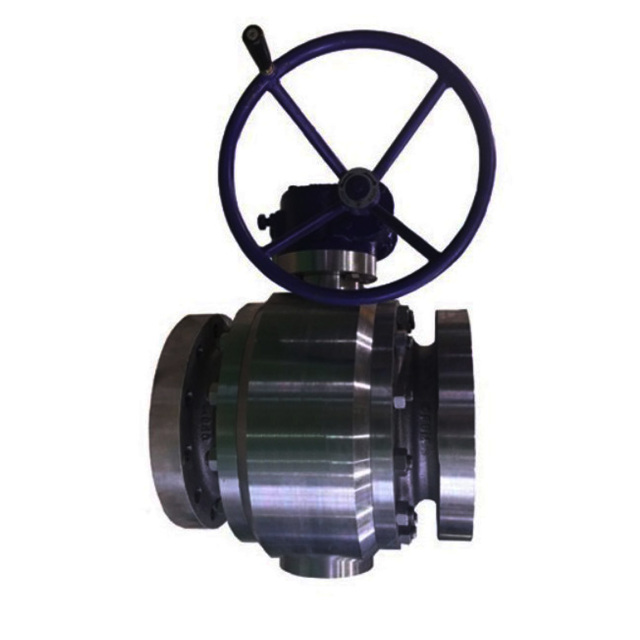

Metal to Metal Ball ValveFully Welded Trunnion mounted Ball Valve

 Specification  :

* Size : Full bore DN15 (1/2") ~ DN500 (20")

* Blow-out Proof Stem

* Fire Safe Design (API 607, API 6FA & BS6755)
