Description:

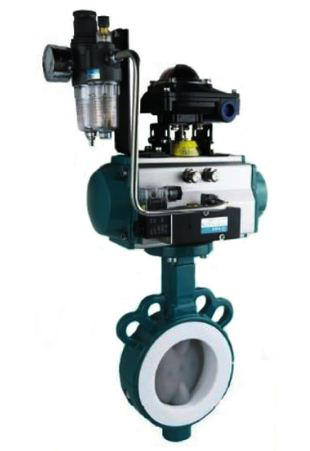

Pneumatic PFA Lined Butterfly Valve series 144
BUENO Pneumatic PFA Lined Butterfly Valve series 144Wafer & Lug Corrosion resistance valve, Lined Butterfly Valve series 144 Wafer & Lug Corrosion resistance valve, Lined butterfly valve is designed for control and the isolation of aggressive media. A fully lined valve is highly recommended for abrasive and corrosive applications where require reliable performance, drop-tight shutoff, constant torque ad no maintenance.
Specification :
* Body Configurations : Wafer and Lug
* Valve Size : 1 1/2" ~ 16" (DN40~DN400)
* Material Ductile Iron, WCB Carbon Steel, Stainless Steel
* Temperature -40°C ~ 180°C
* Seat Liner material shall be PTFE, PFA and FEP
* Valve Design: MSS SP-67, API609, ISO 5752/20
* Face to face : API609, ISO 5752, EN558-1
* Flange Adaptabillity : ANSI Class 150, PN10/16, JIS 10K
* Inspection & Testing : API 598, EN 12266
* Mounting Flange : ISO 5211
* Application Chemical Processing, Pertrochemical, Pulp and Paper Processing, Solid handling, Purification, Pharmaceutical Industry, Food Industri, Minning, Textile.
