Diaphgram Valve

Description:

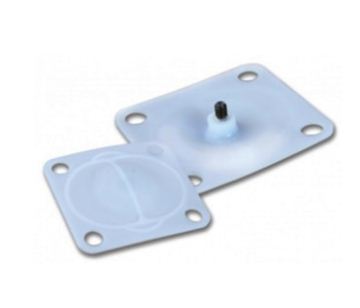

PTFE Diaphragm is widely used in Oil chemical industries, Coal industries,Paper making, food, beverage, and pharmaceutical industries.

Specification  :

BUENO also supplies PFA Lined Diaphragm Valve
PTFE Diaphragm Application:
* Food processing industry
* Electronics industry
* Sanitary application
* Water and waste processing application
* Chemical and refinery
* Pharmaceutical industry
* Chemical production

Description:

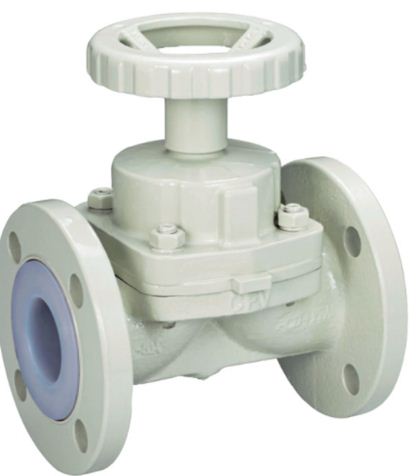

PFA LINED DIAPHRAGM VALVE CLASSJIS 10 K

Specification  :

* Size range 15A ~ 100A
* Pressure Grade JIS 10K
* Operating Temperature -30? ~ +120?
* Valve Body Design ASME B16.34
* Max Operating Pressure :
* 15A ~ 25A : 200 psi
* 40A ~ 50A : 175 psi
* 65A ~ 100A : 150 psi
* Joint JID B2220 10K RF
* Face to Face ISO 5752;BS-5156

Description:

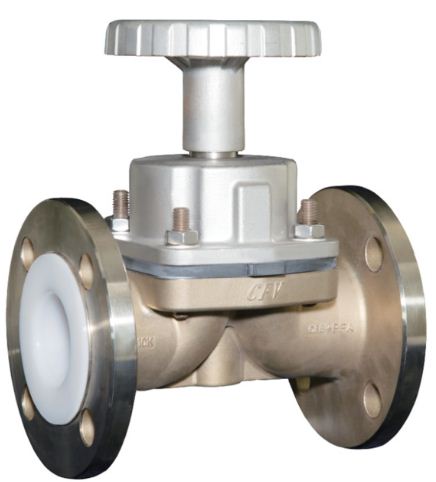

PFA LINED DIAPHRAGM VALVE CLASS JIS 10K

Specification  :

* Size range 15A ~ 100A
* Pressure Grade JIS 10K
* Operating Temperature -30? ~ +120?
* Valve Body Design ASME B16.34
* Max Operating Pressure : 15A ~ 25A : 200 psi 40A ~ 50A: 175 psi 65A ~ 100 : 150 psi
* Joint JID B2220 10K RF
* Face to Face ISO 5752;BS-5156

Description:

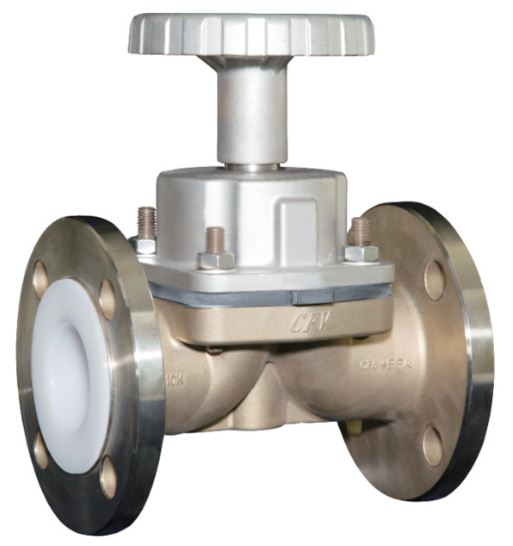

PFA LINED DIAPHRAGM VALVE PN16

Specification  :

* Size range DN15 ~ DN100
* Pressure Grade PN16
* Operating Temperature -30? ~ +120?
* Valve Body Design EN12516
* Max Operating Pressure :
* DN15 ~ DN25 : 200 psi
* DN40 ~ DN50 : 175 psi
* DN65 ~ DN100 : 150 psi
* Joint EN 1092-1
* Face to Face EN-588-1

Description:

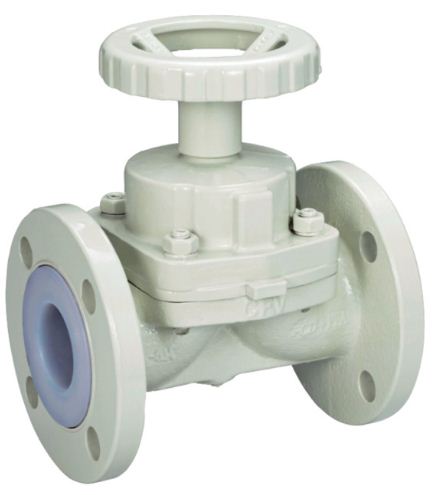

PFA LINED DIAPRAGM VALVE PN16

Specification  :

* Size range DN15 ~ DN100
* Pressure Grade PN16
* Operating Temperature -30? ~ +120?
* Valve Body Design EN12516
* Max Operating Pressure :
* DN15 ~ DN25 : 200 psi
* DN40 ~ DN50 : 175 psi
* DN65 ~ DN100 : 150 psi
* Joint EN 1092-1
* Face to Face EN-588-1

Description:

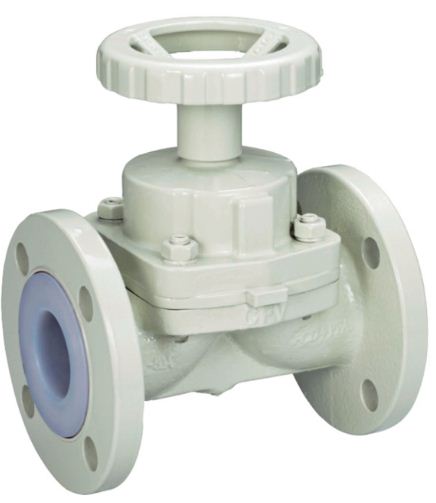

PFA LINED DIAPHRAGM VALVE CLASS ANSI150

Diaphragm Valve ANSI 150

Specification  :

* Size range 1/2" ~ 4”
* Pressure Grade CLASS 150 LB
* Operating Temperature -30? ~ +120?
* Valve Body Design ASME B16.34
* Max Operating Pressure : 1/2" ~ 1” : 200 psi 1,5” ~ 2” : 175 psi 2.5” ~ 4” : 150 psi
* Joint Flange ASME 16.5 CLASS 150 LB Face to Face MSS SP-88

Description:

PFA LINED DIAPHRAGM VALVE ANSI 150

Specification  :

* Size range 1/2" ~ 4”
* Pressure Grade CLASS 150 LB
* Operating Temperature -30? ~ +120?
* Valve Body Design ASME B16.34
* Max Operating Pressure : 1/2" ~ 1” : 200 psi 1,5” ~ 2” : 175 psi 2.5” ~ 4” : 150 psi
* Joint Flange ASME 16.5 CLASS 150 LB
* Face to Face MSS SP-88
